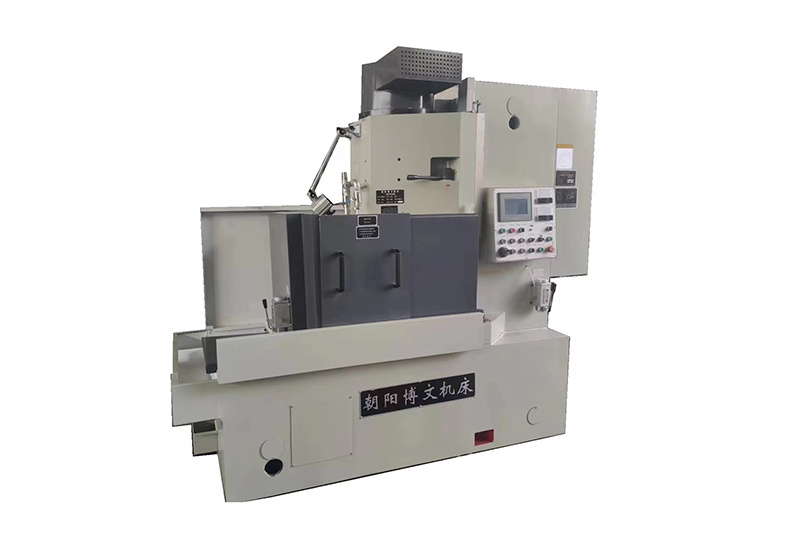

M74 series vertical shaft round table surface grinding machine
M7450G, M7475G, M7480G, M74100G, M74125G, M74140G, M74160G, M74180G, M74200G, M74225G, M74250G a total of 11 varieties, processing range φ500mm - φ2500mm, this series of products are suitable for circular saw blades, air conditioning cylinder blocks, auto parts, measuring tools, bearings, mold mold bases, magnetic materials, hydraulic parts, special ceramics, refractory materials, This is a process that requires grinding in industries such as pumps and valves.

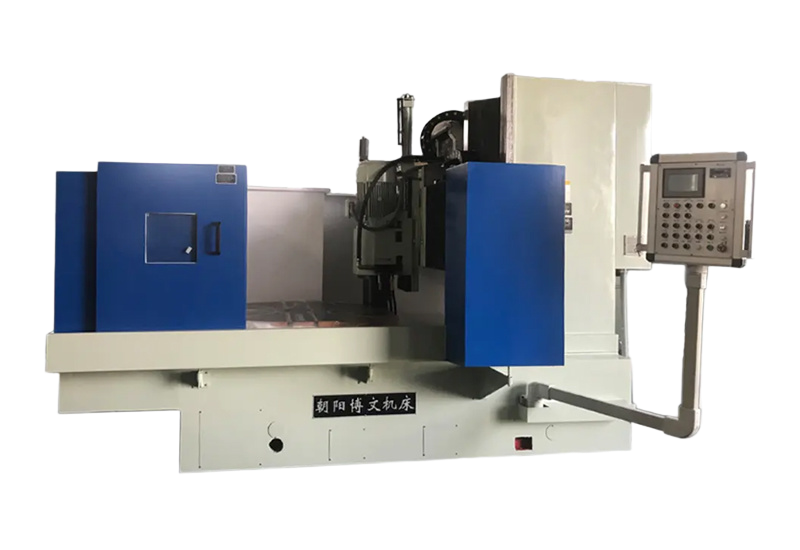

M74/C2 series vertical shaft rotary table die grinder
M7480/C2E, M74125/C2E, M74160/C2E, M74200/C2E, M74225/C2E and other specifications, processing range φ800mm - φ2250mm, this series of products can be used for flat, concave and convex surface, shoulder surface, inner hole, outer surface grinding processing, its most significant feature is that the die can be polished as a whole without disassembling the die handle or guide column, especially suitable for the trimming of the die in the motor factory.

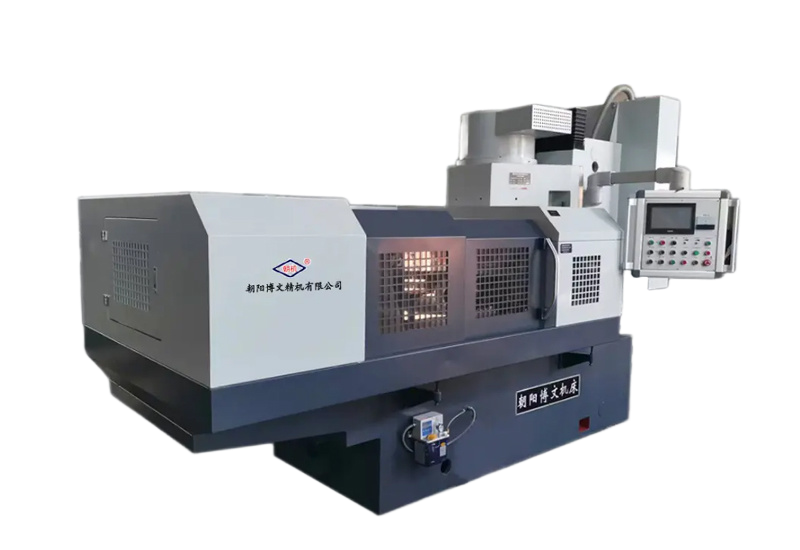

MKG28 series CNC vertical curve grinder
MKG2850, MKG2860, MKG2880, MKG28100, MKG28130 and other specifications, can be widely used in the processing of internal and external curves of hydraulic motor stators, cams, etc. The contour error of the grinding curve is ≤0.02mm, the grinding roughness of the quenched steel can reach Ra0.4μm, and the dimensional control can reach 5 levels of accuracy.

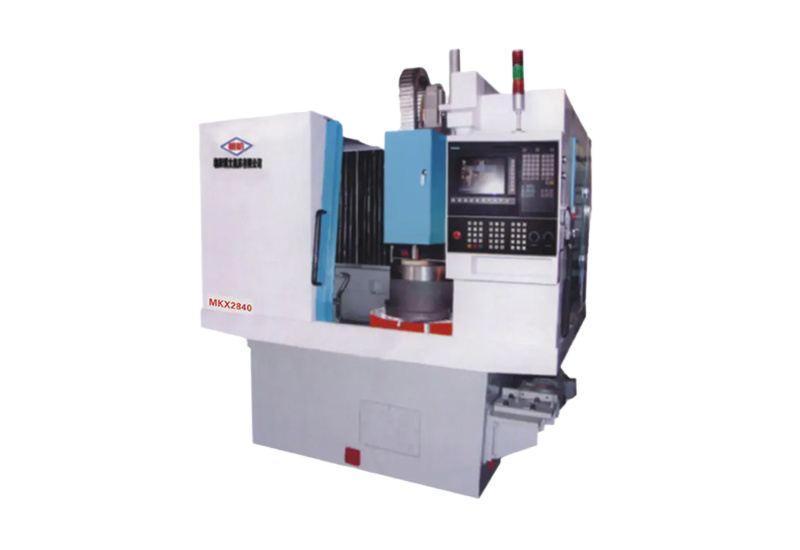

MKX28 series CNC vertical compound grinding machine
MKX2820, MKX2840, MKX2860, MKX2880, MKX28100, processing inner diameter φ100 - φ1000mm, the machine tool is suitable for large diameter high-precision disc parts of the inner hole, stepped inner hole concave and convex end face grinding.
The vertical structure layout of the machine tool, AC servo drive, Siemens CNC system, semi-closed-loop control, optional FANUC or domestic CNC system, optional grating ruler, constitute a full closed-loop control.

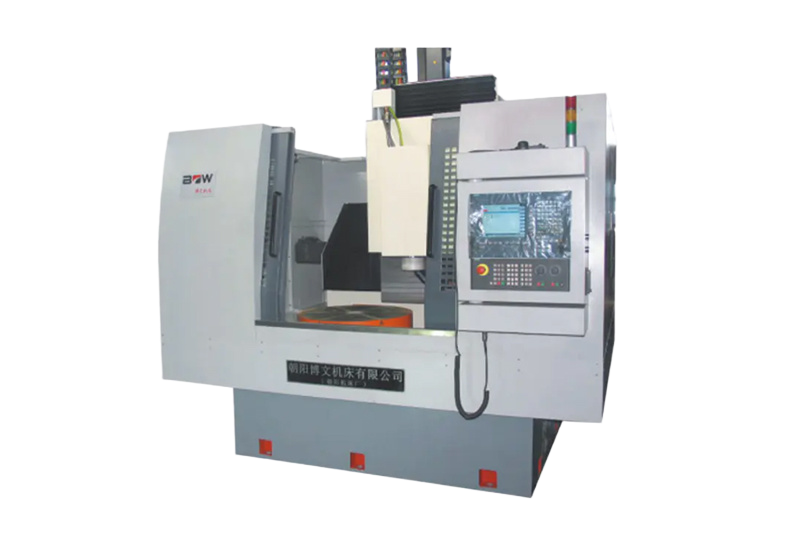

MK74G series CNC vertical shaft round table surface grinding machine
MK7475G, MK7480G, MK74100G, MK74125G, MK74160G, MK74180G, MK74200G, MK74225G, MK74250G, a total of 9 varieties, the processing range of φ750mm - φ2500mm, this series of products use Siemens CNC system, servo motor and reducer drive screw to control the grinding head feed, suitable for circular saw blades, air conditioning cylinder blocks, auto parts, magnetic materials, hydraulic parts and other industries.

2M84 series double end grinder
2M84 series double-end grinding machine has two specifications: 2M8470A and 2M84100A, which adopts a newly designed machine tool structure and advanced PLC control system, and the machine tool automatically controls the grinding parameters to meet the machining accuracy and stable processing requirements.
The equipment is widely used in double-plane grinding of metal and non-metallic hard materials such as valve plates, valve plates, friction plates, rigid sealing rings, cylinder piston rings, oil pump blades, precision hardware, cemented carbide blades, high-precision bearings, ceramics and other metal and non-metal hard materials.
